Artnovion Siena - Bass Trap Corner

Brand: Artnovion
Model: Siena
Type: Bass Trap Corner

Description:

The Corner bass trap is the latest in low frequency absorption. This elegant panel integrates a tuneable membrane over a sealed volume, containing a high performance acoustic core. A secondary posterior compartment positions a high density velocity core in the high pressure zone of the room. The panel is completely tuneable, by means of an adjustable weighted membrane, allowing to pin-point the performance of the panel to a target frequency.

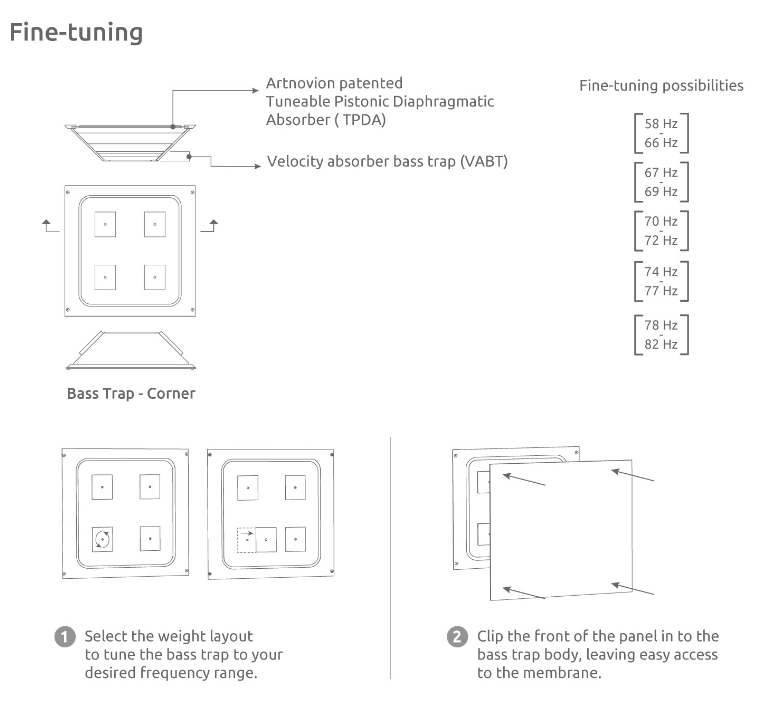

The panels' tuneable membrane works in a similar way to a speaker cone, allowing for a much superior - and controlled - performance. A central mass is supported by an elastic membrane - This mass can then be altered to change the resonant frequency of the membrane, stepping the peak performance of the Trap from 58 to 82 Hz.
T.P.D.A. - Artnovion technology

Purpose:

- Room mode control

- Bass ratio control

- Lowfrequency RT reduction

- Improving low frequency response

- Reducing low frequency time decay

Main Features:

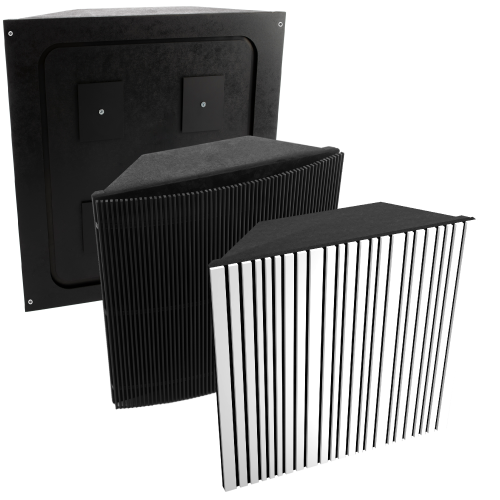

Product Composition:

- Natural wood or Lacquered HMDF
- Marine grade plywood structural frame
- Calibrated cell acoustic foam
- Tuneable diaphragmatic membranes (TPDA)
- High performance porous absorber core (VABT)

Integrated Fixing System

Range | Dimensions:

Siena Bass Trap - Corner | 595x595x163mm

The technical file for Siena Bass trap can be viewed here

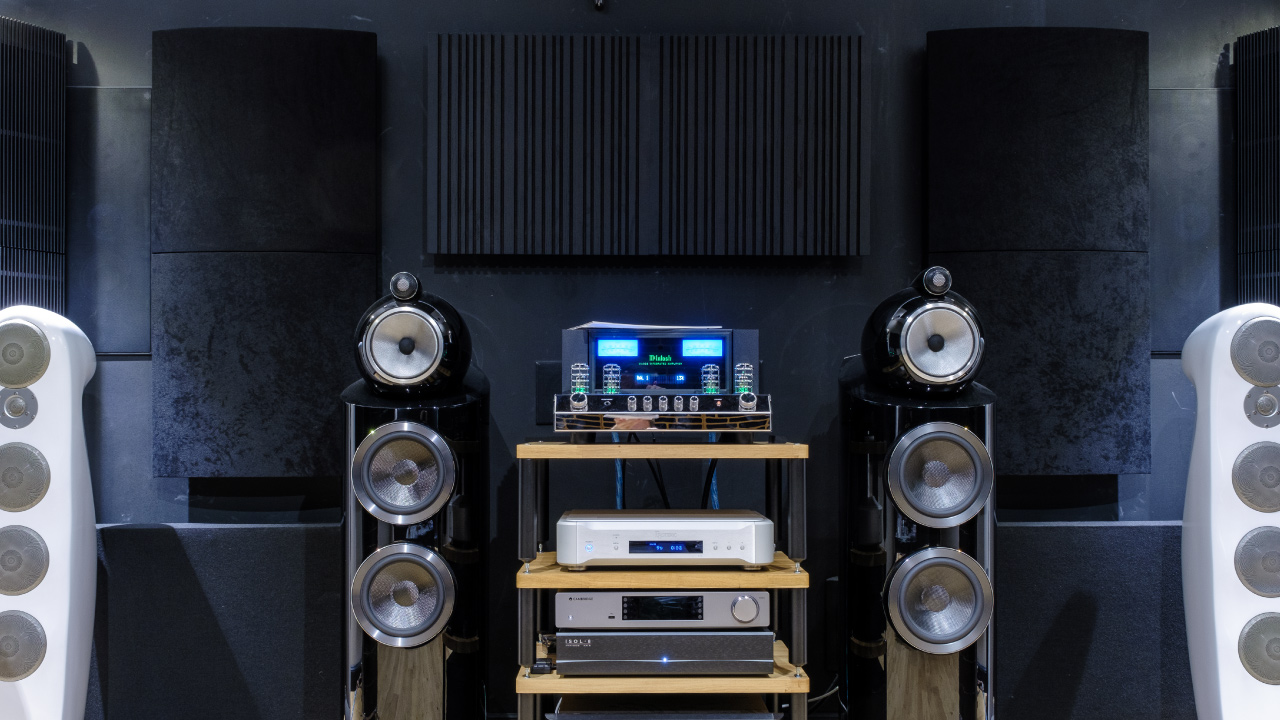

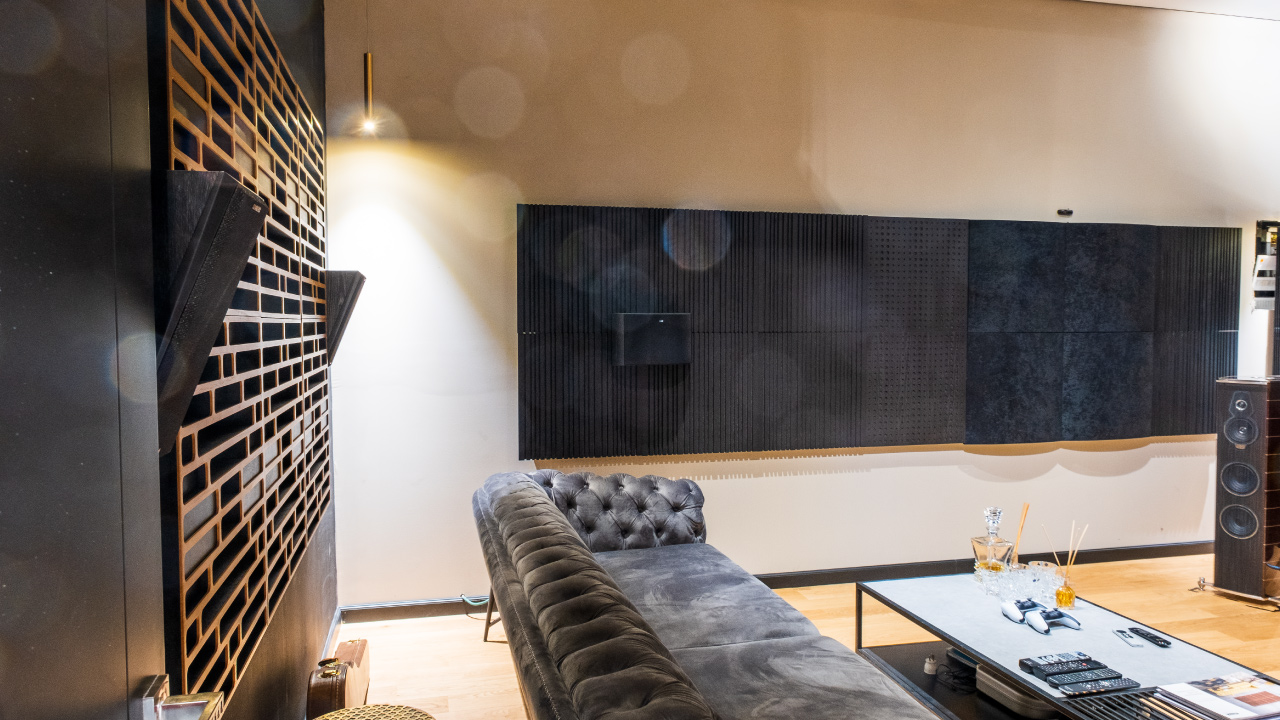

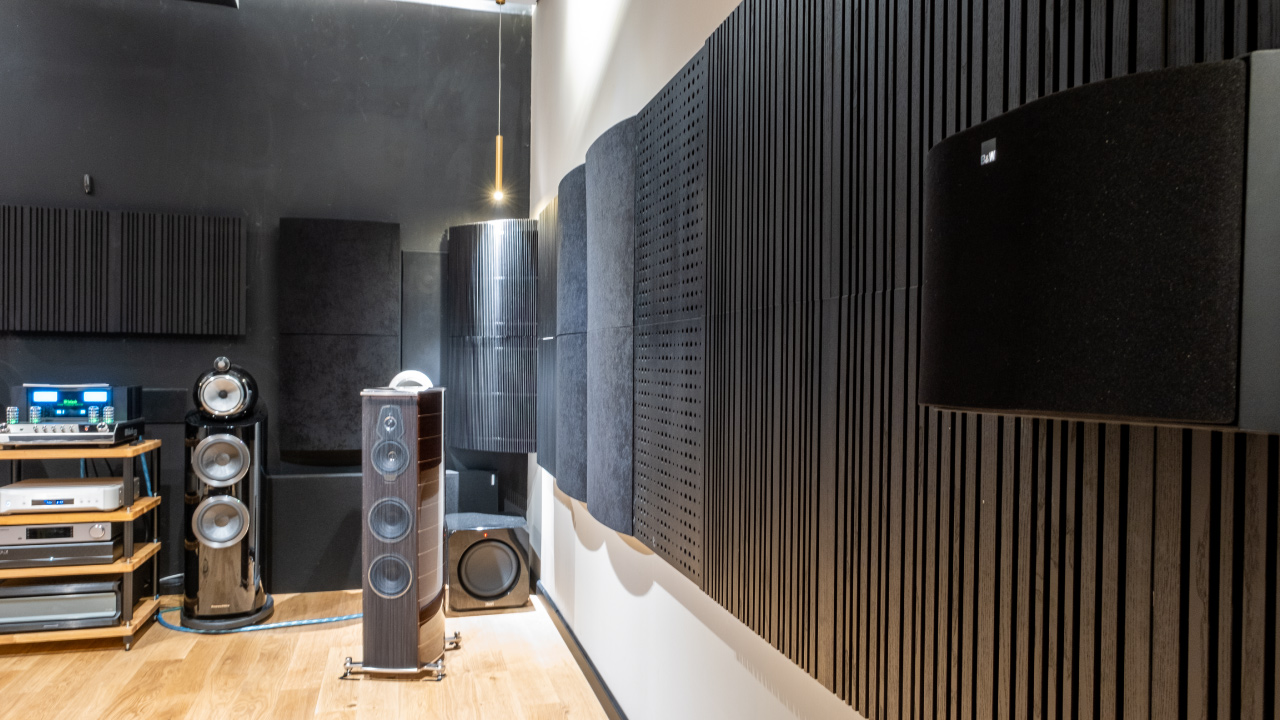

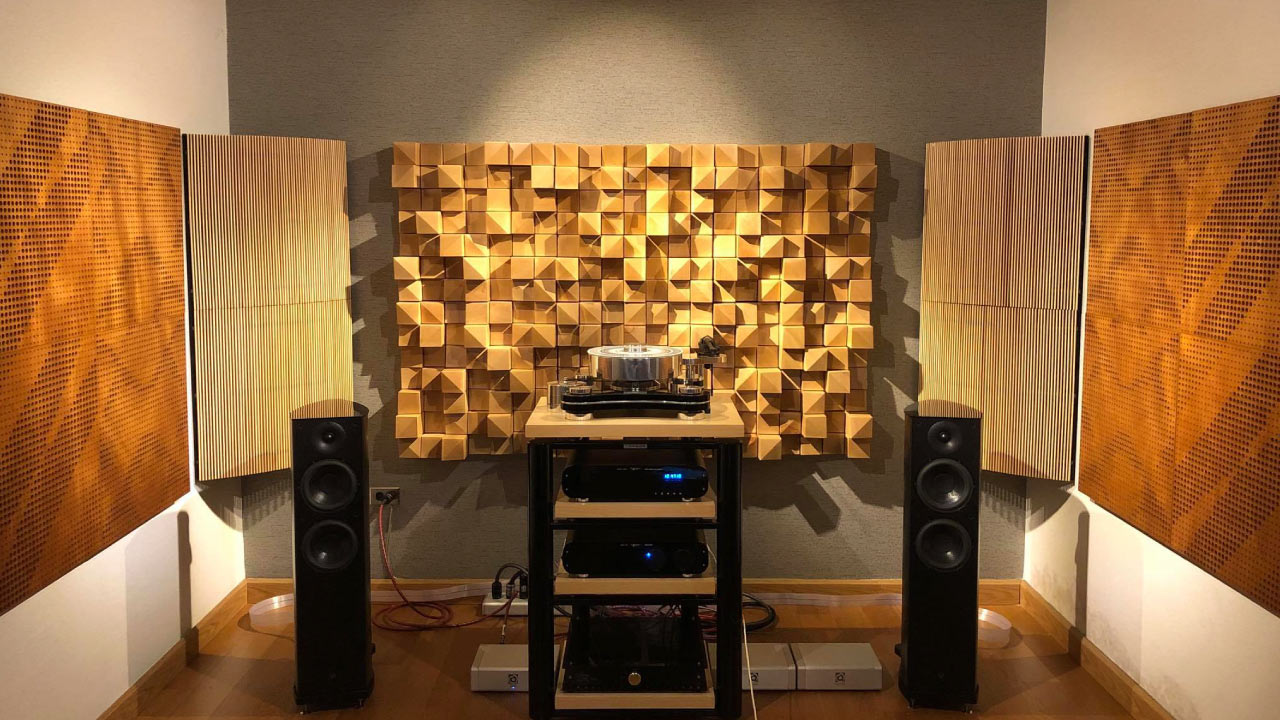

Application: Hi-Fi Listening Room, Living Room, Media Room, Home Cinema
