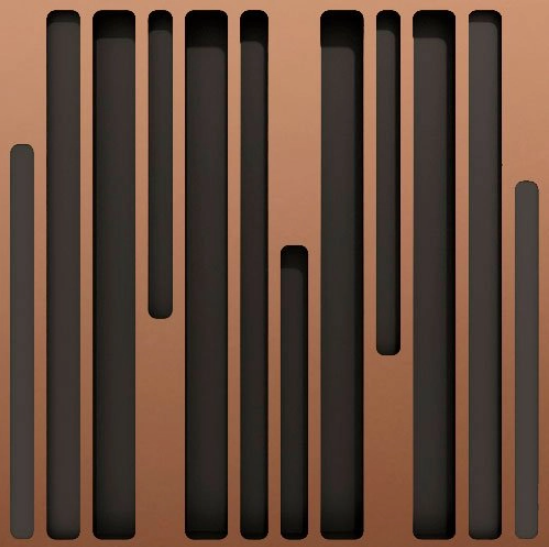

Aries - Diffuser

Brand: Artnovion
Model: Aries W - Diffuser
Type: Diffuser

Description:

Diffusion is a prime component of any balanced acoustic treatment.

Aries Diffuser was designed using various diffusion techniques – inspired from traditional numeric sequence diffusers, it is composed of asymmetrical multi-depth wells, in which specific wells use a folded-depth technique to boost the mid-low diffusion range of the panel.

Whilst the panel itself is only 60mm thick, the extended wells on the diffuser are designed to be effective at 160 Hz and 400 Hz, with a linear diffusion pattern from 700Hz upwards – providing Aries diffuser an unheard-of diffusion capacity for its size.

The asymmetric wells are arranged in an optimised sequence to prevent lobing when used in larger arrays – in this, in combination with the extended low-range diffusion, make Aries go lower and outperform any other diffuser in its class – a truly unique approach to diffusion techniques, and a clear advance in performance over the traditional QRD design.

Why use diffusion?

Diffuser panels scattering incoming sound waves into smaller, lower energy waves, scattered over a large area. These scattered reflections create a homogeneous sound field distribution and a full, balanced acoustic response. This improves speech intelligibility, music quality, and creates a more uniform, larger sweet spot.

In spaces like recording control rooms, sound mastering rooms or other high fidelity listening environments where the sound quality is critical, controlling the bandwidth of diffusion is a priority. Myron E Diffuser was conceived and developed by Artnovion with a specific technical advantage, which allows it to perform way beyond what most of other sound diffusing products are able to deliver.

Purpose:

- Enlarging sweet spot
- Specular reflection control
- Flutter echo control

Product Composition:

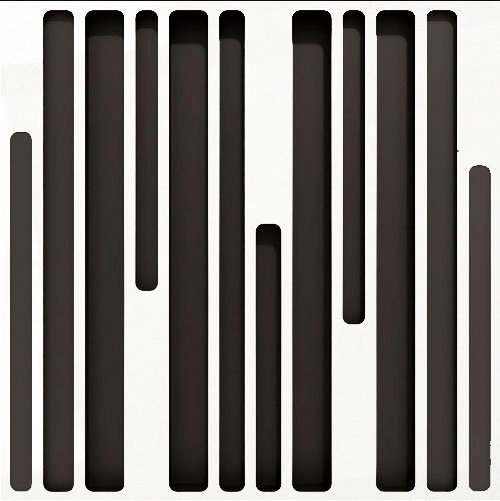

Aires is available in a selection of quality lacquered and natural wood finishes.

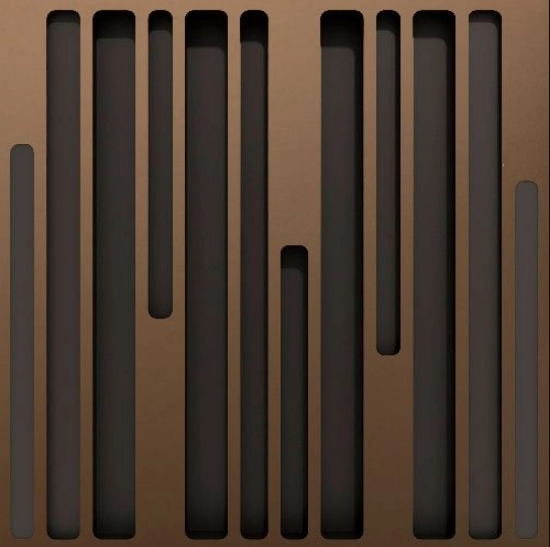

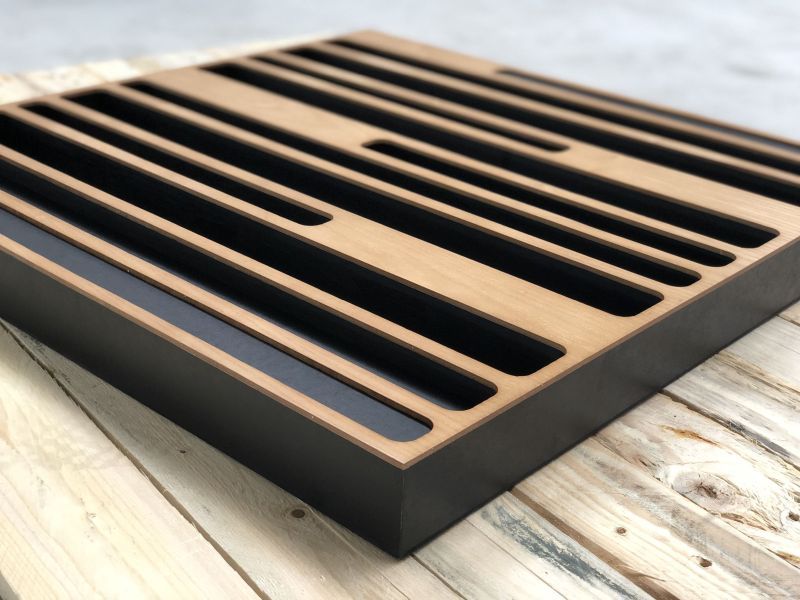

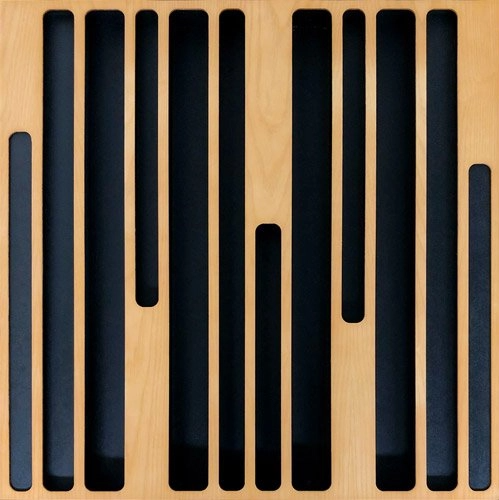

Aries | Natural wood veneer:

- Natural wood veneer
- HMDF and plywood structure

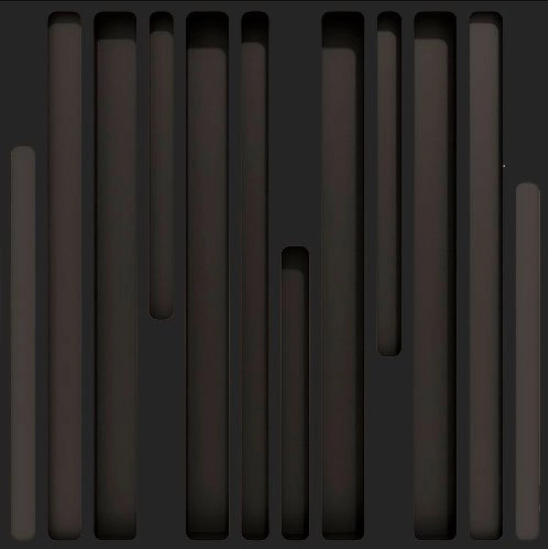

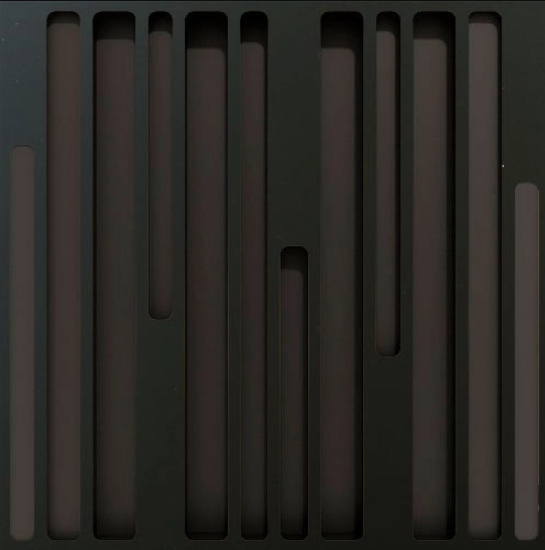

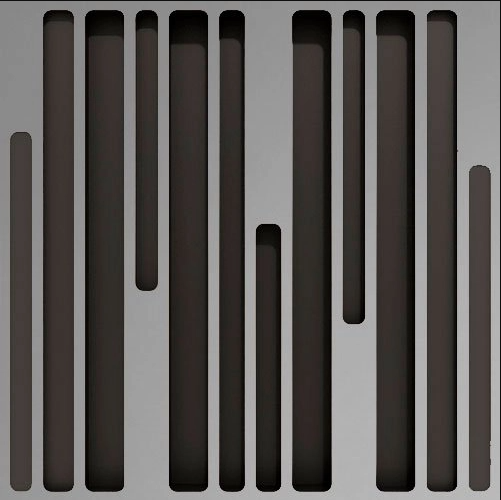

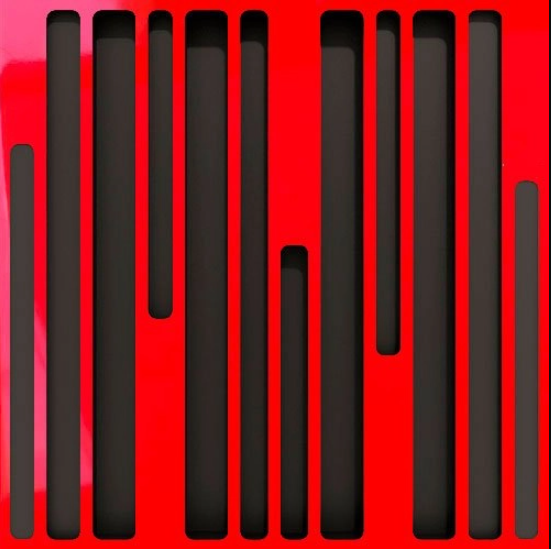

Aries | Lacquered HMDF:

- Lacquered HMDF
- HMDF and plywood structure

This product is available with the following fire resistance rating: Furniture grade

Scattering range: 160Hz to 40000 Hz
Dimensions: 595x595x60 mm

Integrated fixing system | panel can be rotated 90º to any orientation.

Designed to be used with other Artnovion products, with exactly the same thickness once installed. Aries is hung on screws, and can be installed on any surface, in any orientation.

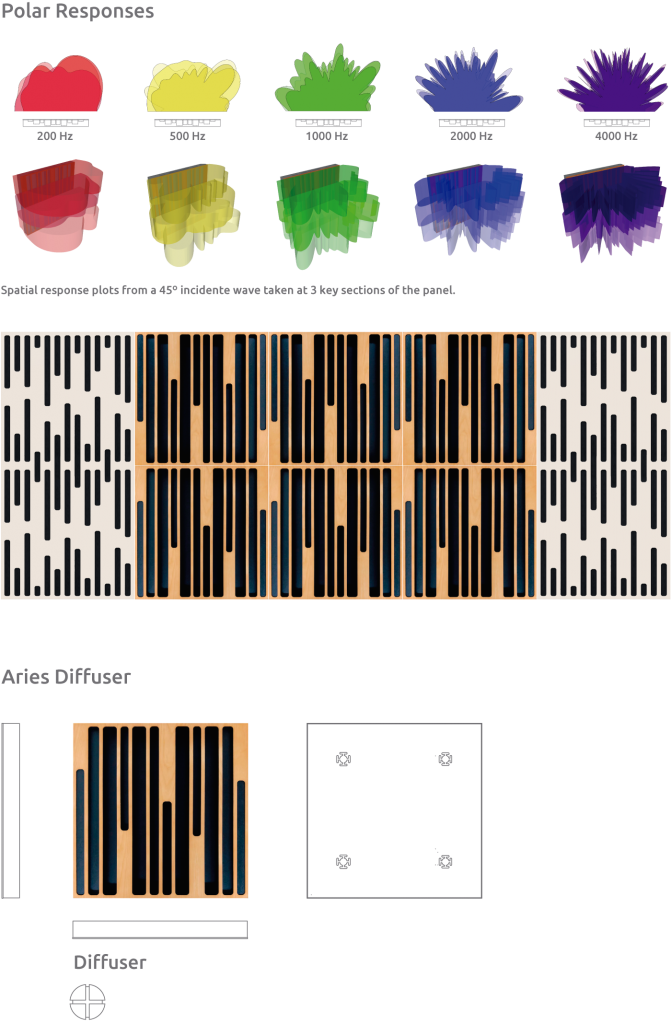

You can view the technical file here

Note: The panels are sold 4 pieces in a box. Minimum order quantity is 4 panels.

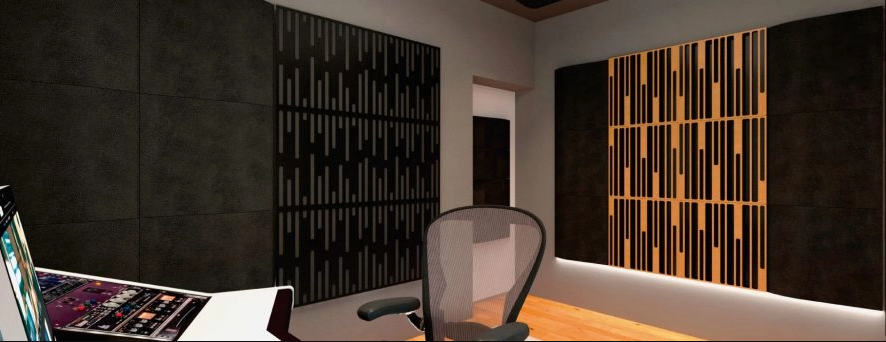

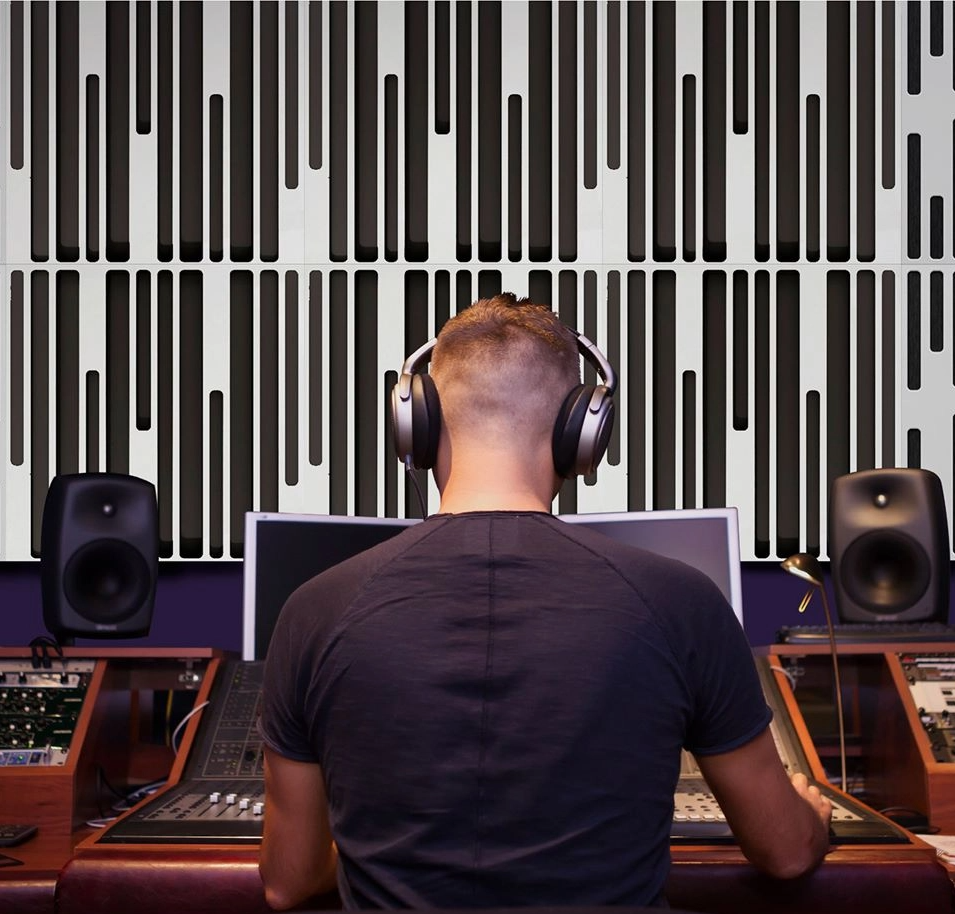

Application: Control Room, Recording Room, Home Studio, Broadcast Studio, Drum Room
