Brand: CHOVA
Model: 110/2
Type: Insulation plate
NOTE !!! THE PRICE IS FOR QUARTERLY METER !!!
Minimum order quantity: 10m²
DESCRIPTION:
Plates of solid and semi-rigid polyurethane foam.

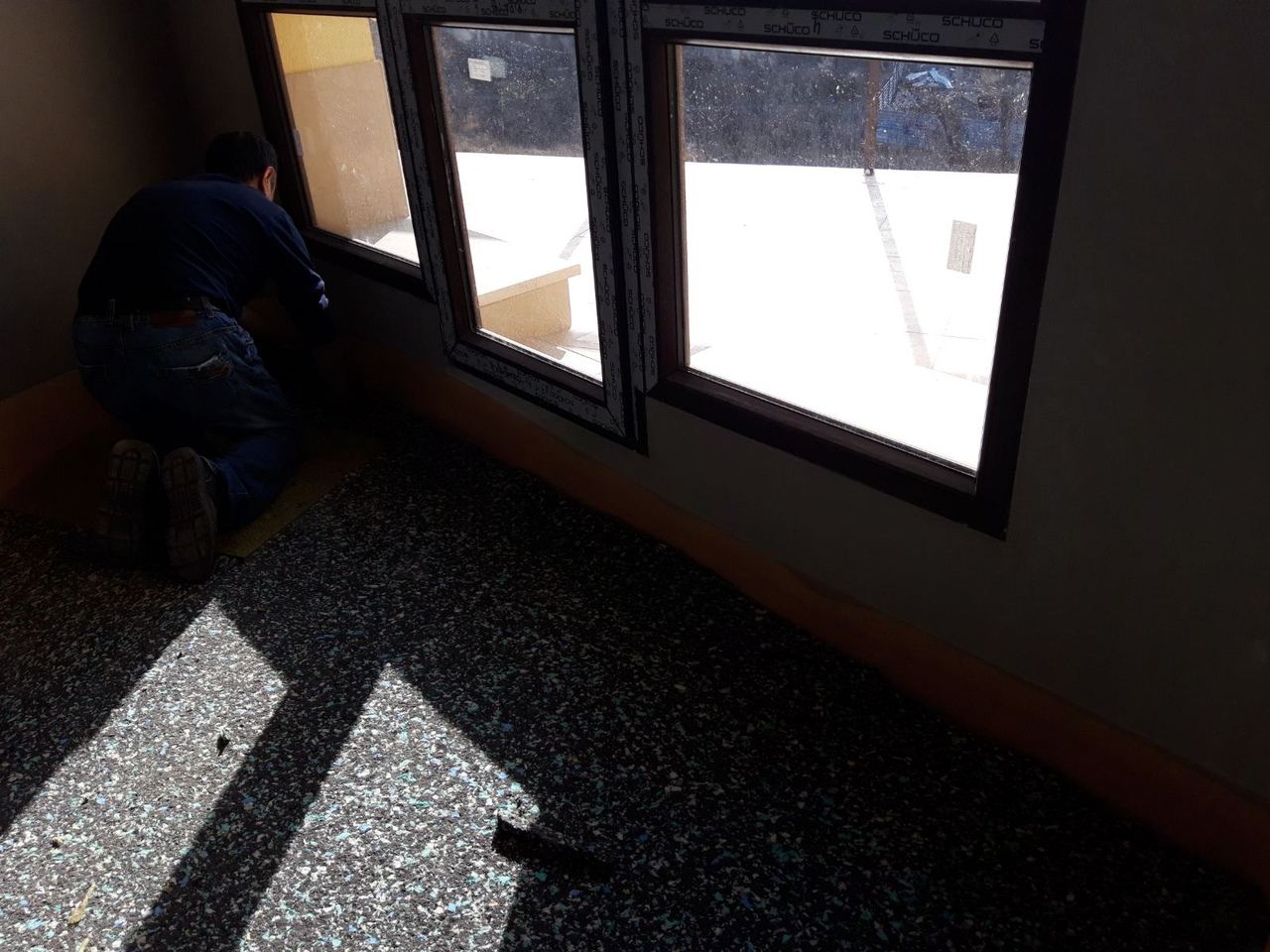

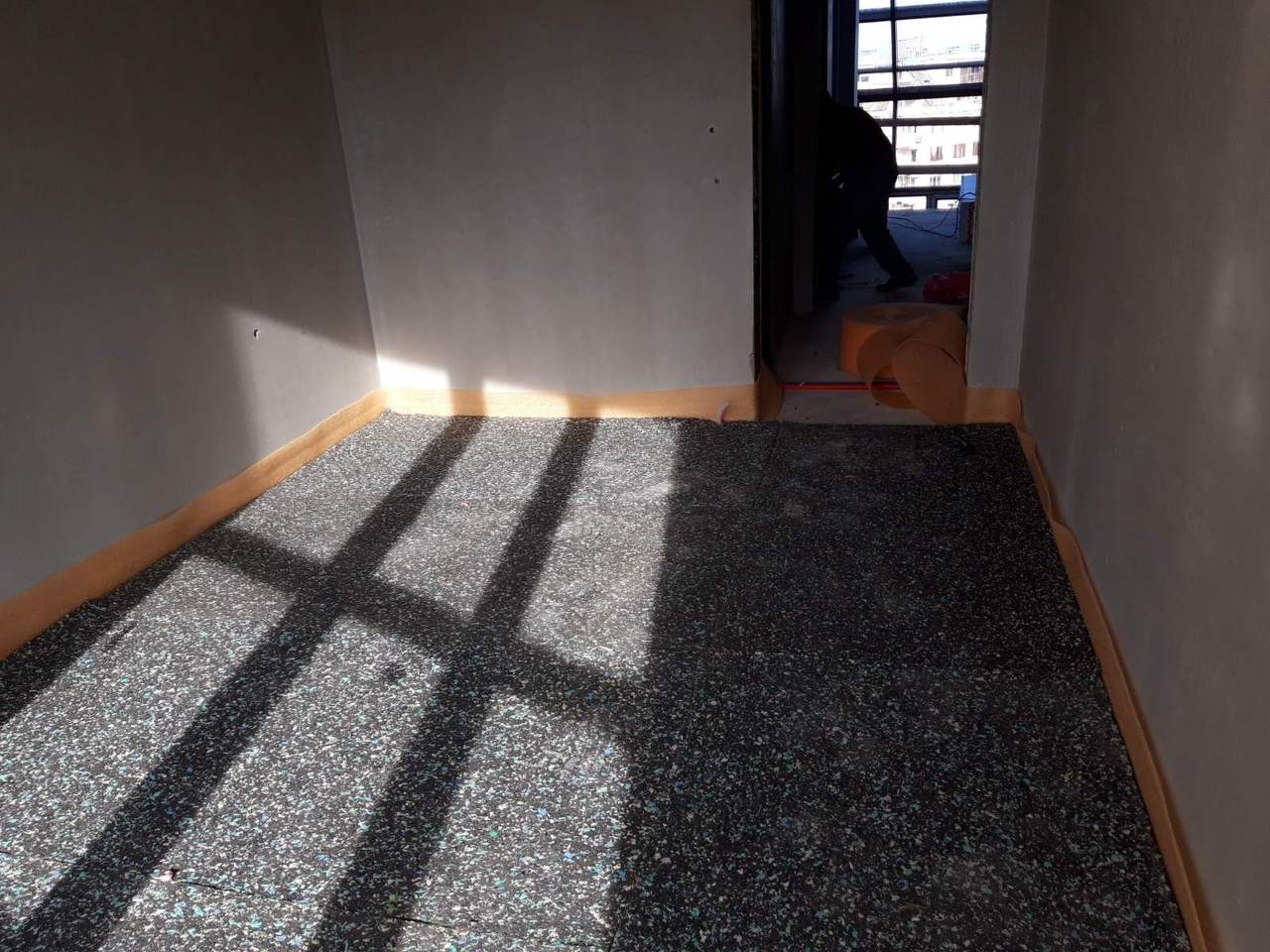

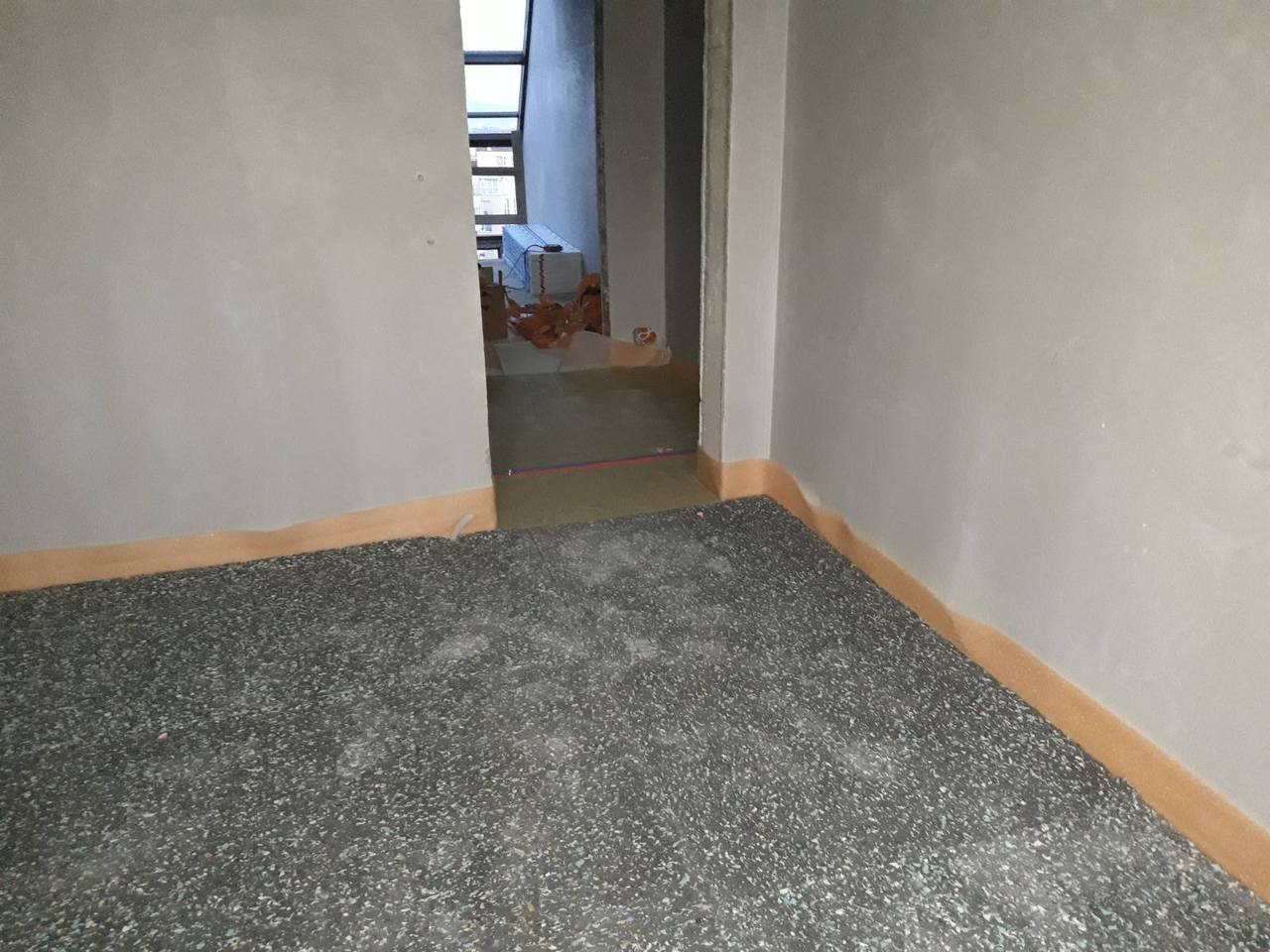

INSTALLATION
1. Before installation, the surface must be clean, dry and uneven.
2. Place an agglomerated strip on the walls and columns to avoid the rigid connection between the wall and the floating screed.
3. Cover the entire surface with the slab and prepare to place the wooden floor.
4. Before finishing the flooring, protect the agglomerated polyethylene foil.
RECOMMENDED FOR ...
- Sound insulation of impact noise (PANEL 110/2) in cases requiring high damping values such as local machine shops and activity with sound amplifiers.
- Heat insulation in the floors.
PROPERTIES:
Density: 110kg³
Thickness (mm): 30
Thermal conductivity (W / m · K) 0.039
Compression resistance 40% kPa: 25
NRC (Acoustic Absorption): 0.43
Operating temperature: -40 ° + 120 °
Acoustic insulation (dB): 32dB (According to the test performed in an approved laboratory)
Elongation at break (%): 80%
Adhesion resistance (kPa): 100 kPa
Reaction to Fire: Euroclass F
DIMENSIONS (mm.) 2,000 x 1,000
m² / PALET: 120
Application:
Addition of heat and sound insulation of plasterboard in glued systems. Sound noise in floors.
Material | полиуретанова агломерирана пяна |
---|---|
Acoustic insulation | 32dB |
NRC | 0.43 |
Absorbing sound insulation properties | Powerful sound absorber |
Density | 110kg/м³ |
Diathermancy | 0,039 kW/ m-C |
Working temperature | -40 ° C ~ 120 ° C |
Resistance to traction | 100kPa |
Elongation at break | 80% |
Self-adhesive layer | No |
Sheet size | 2000x1000мм |
Squares in a pallet | 120 |
Thick | 20мм |
Weight | 3.30 кг |
Application | Floor insulation, Thermal insulation, floating floor |
