Brand:LED SPEKTAR

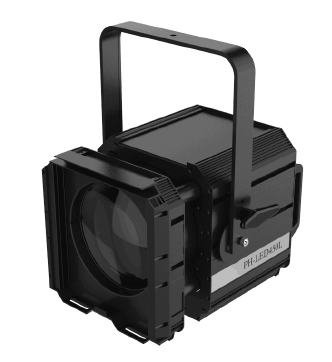

Model:LED zoom FRESNEL 450 L
Type:Theatrical LED fresnel spotlight 450W with zoom
Description: Adopting high-power LED and high-efficiency heating dissipation technology to reach the great illumination output, the unit can be applied in all kinds of occasions which require high quality of lighting. With the advanced liquid-cooling system, the LED source reached a better heat dissipation and always under a well-served condition. The unit equipped with fresnel zoom lens which ensure the great luminious out and large zoom angle. Color temperature from 3000k to 5700k can be tuneable.
Adopting a large number of international advanced technology, this unit has the advantage of bright and shinning light, no color temperature drift, low light decay, extra low noise, high energy efficiency and electrical safety. The unit is mainly used in TV studios, theaters, conference system and multi-functional halls, etc which have high requirements for all aspects.
We use high-power LED modules with international famous brand as the light source,with the features of high brightness, low light decay, low energy consumption and long service life (approx. 50000 hours).
LED drive program uses anti interference processor with high stability and adopts PFM constant currency technology. Comparing with the traditional technology of
PWM, PFM is with the feature of small ripple voltage, stable switching frequency,long service life, high conversion efficiency and less heat.
Built-in DMX512 control mode and PFM digital dimming system are equipped to achieve 0~100% dimmable light.
The light body is molded with high-pressure die-cast aluminum which makes it light and elegant.
The beam angle is 7°~50° which can be manual zoomed.
With the lens which can be stretch out and draw back, the light body becomes smaller and lighter.
Technical Characteristics:
Rated voltage: AC100V-240V
Frequency: 50Hz / 60Hz
Rated power: 450W
CRI: Ra> 90
Luminous flux from a light source: 28000 lm
Color temperature: 3000K / 5700K as optional on request
Adjustable: 3000K ~ 5700K

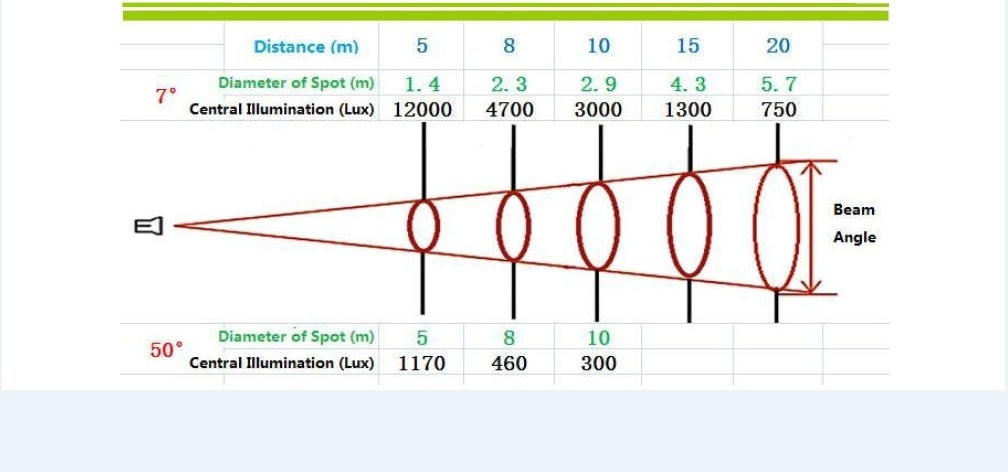

Beam angle: 7 ~ 50 °
LED light source: High power LED modules
IP protection: IP20
Diode life: 50000h (when LED P-N T≤70 ° C)
Operating temperature: -10 ° C / + 40 ° C
Dimmer (digital): 0-100%
Control: DMX
Dimensions: 300 × 270 × 305 (mm)
Connector: 5 PIN
Weight: 8kg
Application: TV studios, theaters, conference and multifunctional halls that have high requirements for all aspects.
Power Supply | AC100V-240V, 50Hz ~ 60 Hz |
---|---|
LED | High power LED modules |
Color | white |
Power W | 450W |
Life LEDs | 50000 hours |
Color rendering index | Ra 90 |
Luminus flux | 28000 Lm |
Beam angle | 7~50° |
Control | DMX, Мanual control |
Interface on spotlight | 5 pin |
Display | Yes |
Cooling | modern liquid cooling system |
Dimmer | 0-100% |
Colour temperature | 3000K / 5700K as an option on request |
Working temperature | -10℃ ~ 40℃ |
Housing color | черен |
Protection | IP 20 |
Certificate | CE, RoHS |
Weight | 8.00 кг |
Size | 300×270×305 (mm) |
